Summary

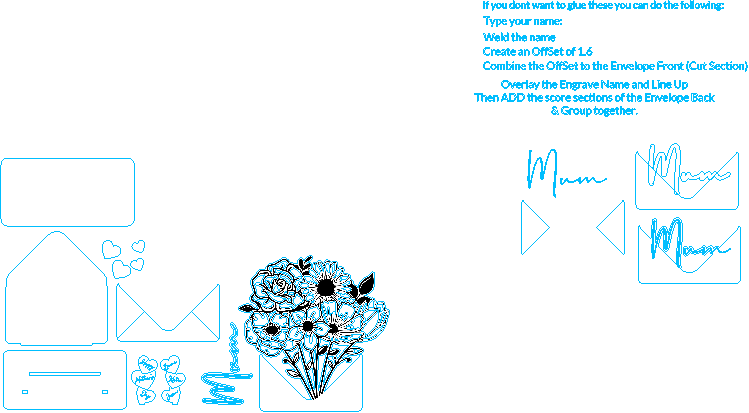

My take on an Alternative to a Paper Card and something that can be kept and displayed in future too.... The intricate design was hand drawn on Procreate and brought into XCS to finishing designing. This is fully personalisable with Mum, Mom, Mummy, Mommy, Nana, Nan anything! I also added instructions on how to personalise and make an offset and do a little designing for people who like the learn (like me).... I feel learning through these projects make's learning fun and easy with XCS too... As always my projects come with Full PDF Instructions & XCS Settings Ready for a NEW XTool Member to use as well! This is a FREE Design!! Please show your appreciation for this project by LIKING - COMMENTING & FOLLOWING @FrenchieFirm
Production Info
Application scenario
Laser processing、Pen drawing
Software
xTool Creative Space、Proceate、Affinity
Machine & processing module
40W
10W
2W, 5W, 10W, 20W
55W
Material used
Difficulty Level
Beginner
Total time
28 min
Also compatible with other machines. Visit the Material EasySet Library for more.
Setting
Setting 1 Process on baseplate - Bitmap Laser Engrave - BitmapMode: Jarvis BitmapScanMode: zMode Density: 100 Power: 33 Repeat: 1 Speed: 180
Setting 2 Process on baseplate - Laser Cut - BreakPointCount: 2 BreakPointDistance: 100 BreakPointMode: count BreakPointPower: 0 BreakPointSize: 0.5 CuttingDrop: false CuttingDropValue: 3 EnableBreakPoint: false EnableKerf: false KerfDistance: 0 Power: 100 Repeat: 1 Speed: 14
Setting 3 Process on baseplate - Laser Score - EnableKerf: false KerfDistance: 0 Power: 60 Repeat: 1 Speed: 100
Setting 4 Process on baseplate - Laser Cut - BreakPointCount: 2 BreakPointDistance: 100 BreakPointMode: count BreakPointPower: 0 BreakPointSize: 0.5 CuttingDrop: false CuttingDropValue: 3 EnableBreakPoint: false EnableKerf: false KerfDistance: 0 Power: 100 Repeat: 1 Speed: 16
