Wooden Round 40mm Keychain Jig

CreativeEmotions avatar
CreativeEmotions
·
95
287
Design Files (1)
  • Wooden-Round-40mm-Keychain-Jig.xcs
    P2S
    • Edited 2025/04/29

    Summary

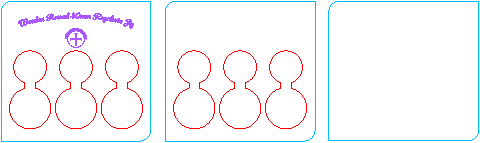

    Enhance your laser engraving projects with this versatile jig, designed specifically for engraving round 40mm keychains.

This jig allows you to engrave three keychains at once, featuring precise slots and crosshairs to ensure perfect alignment.

You can adjust the height to suit your keychains by using the right thickness of plywood. For keychains that are 9-10mm thick, use 2x 5mm or 3x 3mm plywood for the jig top plates, and any thickness for the base plate.

This project is perfect for both hobbyists and professionals looking to enhance their engraving precision.

    Production Info

    Instruction
    Not included
    Application scenario
    Laser processing
    Software
    xTool Creative Space
    Machine & processing module
    xTool P2S
    55W
    Compatible xTool Machine
    Guidelines for using compatible machines
    xTool S1
    10W, 40W, 20W
    xTool F1
    10W
    xTool M1 Ultra
    10W, 20W
    xTool D1 Pro
    20W, 40W, 5W, 10W
    xTool F1 Ultra
    20W
    xTool P2
    55W
    xTool M1
    5W, 10W
    Material used
    3mm Birch Plywood
    Difficulty Level
    Intermediate
    Total time
    15 min

    Setting

    Setting 1 Process on baseplate - Laser Cut - BreakPointCount: 2  BreakPointDistance: 100  BreakPointMode: count  BreakPointPower: 0  BreakPointSize: 0.5  CuttingDrop: false  CuttingDropValue: 1  EnableBreakPoint: false  EnableKerf: false  KerfDistance: 0  Power: 66  Repeat: 1  Speed: 15
    Setting 2 Process on baseplate - Laser Cut - BreakPointCount: 2  BreakPointDistance: 100  BreakPointMode: count  BreakPointPower: 0  BreakPointSize: 0.5  CuttingDrop: false  CuttingDropValue: 1  EnableBreakPoint: false  EnableKerf: true  KerfDistance: 0.1  Power: 66  Repeat: 1  Speed: 15
    Setting 3 Process on baseplate - Vector Laser Engrave - BitmapScanMode: zMode  Density: 100  Power: 26  Repeat: 1  Speed: 380
    Setting 4 Process on baseplate - Vector Laser Engrave - BitmapScanMode: zMode  Density: 100  Power: 26  Repeat: 1  Speed: 350

    License

    CC BY-NC-SA
    This license allows reusers to distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, and only so long as attribution is given to the creator. If you remix, adapt, or build upon the material, you must license the modified material under identical terms.
